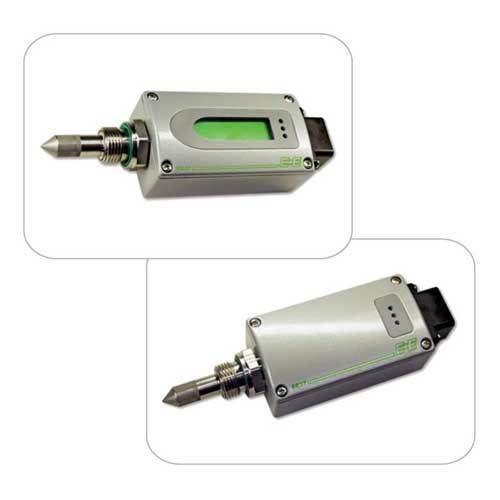

Dew Point Hygrometers

Dew Point Hygrometers
Dew Point Hygrometers
Product Code : 45
Product Description

Being an ISO certified company, we are engaged in delivering premium quality Dew Point Hygrometers that are extensively used for the measurement of moisture in a compressed air. These products are manufactured at our well-equipped manufacturing unit in accordance with the set international norms using high quality raw material under the supervision of learned professionals. Our offered products are available in several specifications to meet the diverse needs of our reputed clients. We assure on-time delivery of these Dew Point Hygrometers at pocket-friendly prices.

Features:

  • Compact design

  • Easy to carry

  • Hassle-free performance

Dew Point Hygrometers

The exact monitoring of dew point temperature in compressed air systems, dryers for plastic and other industrial processes is becoming increasingly more important. EE371 series with a measuring range - 80 60°CTd (-112 140°FTd) and EE372 serieswith a measuring range- 40 60°C Td (-40 140°F) are the ideal solution for such applications. The core of the transmitter is the monolithic measurement cell type HMC01, developed by E+E Elektronik in thin-film technology. An autocalibration procedure which is integrated in the device and years of experience in low humidity adjustment make an accuracy of <2°C Td (±3.6°FTd) possible .



Monitoring of compressed air systems Measuring range -80 ...60°C Td (-112 ...140°F Td)
Monitoring of compressed air systems Measuring range -80 ...60°C Td (-112 ...140°F Td)
Refrigerant type dryer Accuracy of measurement ±2°C Td (±3.6°F Td)
Absorption dryer Two Td/Tf alarm outputs
Plastics dryer Autocalibration
Pressure tight up to 100 bar (1450psi)


General
Supply voltage 10...30V DC
Current consumption at 24V DC Voltage output: typo40mA/ during autocalibration: 100mA current output: typo80mA / during autocalibration: 140mA
Pressure range 0...20bar (0...290psi) / 0...1OObar (0...1450psi)
System requirements for Softwear WINDOWS 2000 or later; serial interface
Serial interface for configuration RS232C
Housing / Protection class AI Si 9 Cu 3/ IP65; Nema 4
Electrical connection 7-pole industrial plug: DIN VDE 0627/ IES 61984 cable cross-section: 0.25 - 1mm2 cable connection: PG 11
Sensor protection stainless steel sintered filter
Working tempreture range probe: -40 ...70°C (-40 ...158°)
electronic: -40 ...60°(-40 ...140°F)
with LCdisplay: -20 ...50°(-4...122°F)
Storage temperature range -40 ...60°C (-4 ...140°F)
Electromagnetic compatibility according to EN6 1000-6-3 EN 61326-2-3 EN6 1000-6-2 EN61326-1 FCC Part15 C1assB ICES-003 ClassB
