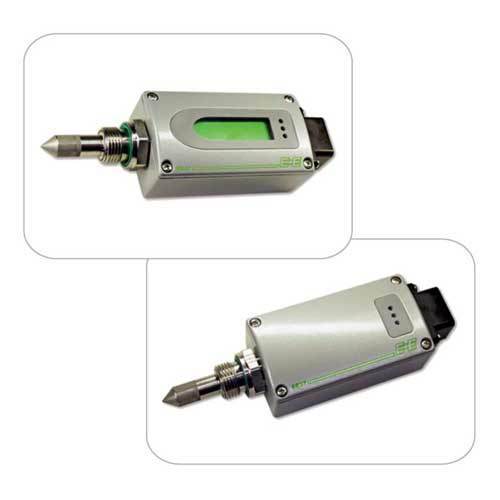

Dew Point Sensors

Dew Point Sensors
Dew Point Sensors
Product Code : 22
Product Description

Since our incorporation in year 2001, we have been engaged in manufacturing and supplying premium quality Dew Point Sensors that are widely used in industry for the measurement of temperatures. Manufactured in compliance with the international quality standards using supreme quality raw material under the supervision of our diligent professionals. In order to fulfill the variegated requirements of our clients, the offered products are available in various specifications. Our clients can avail these Dew Point Sensors at cost effective prices.

Features:

  • Clear display

  • Rugged design

  • Durability

  • Accurate measurement

EE371 / EE372 Series

The exact monitoring of dew point temperature in compressed air systems, dryers for plastic and other industrial processes is becoming increasingly more important. EE371 series with a measuring range -80...600C Td (-11 2...140"FT d)and EE372 series with a measuring range-40...60 0C Td (-40...MOT) are the ideal solution for such applications. The core of the transmitter is the monolithic measurement cell type HMC01, developed by E + E Elektronik in thin-film technology. An autocalibration procedure which is integrated in the device and years of experience in low humidity adjustment make an accuracy of <20C Td (±3.60F Td) possible



Typical Applications

Features

Monitoring of compressed air systems

Measuring range -80...60 0C Td (-112...140 F Td)

Refrigerant type dryer

Accuracy of measurement ±2°C Td (±3.6 F Td)

Absorption dryer

Two Td/Tf alarm outputs

Plastics dryer

Autocalibration



Pressure tight up to 100 bar (1450psi)
